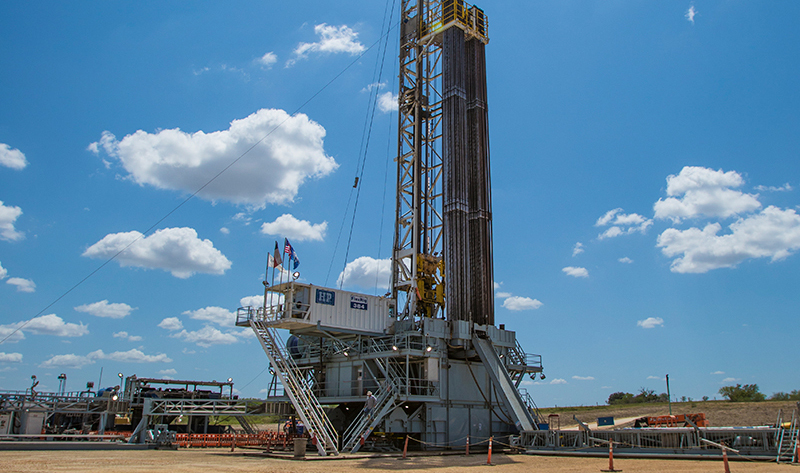

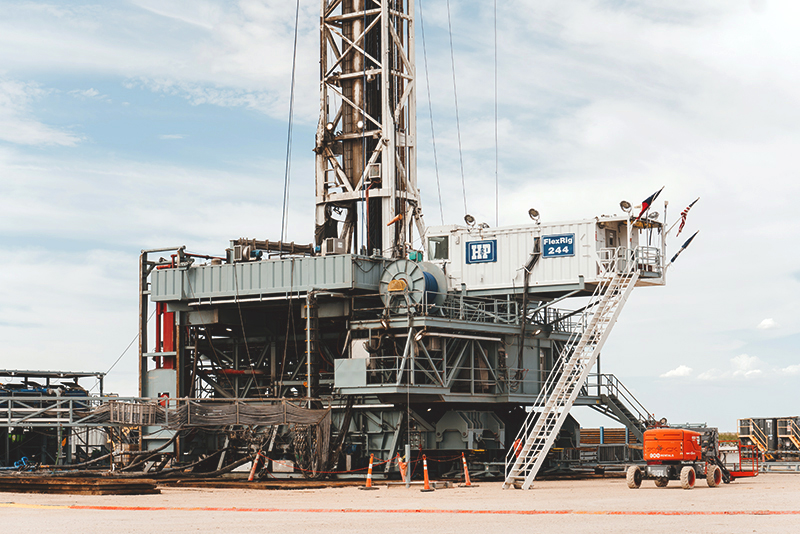

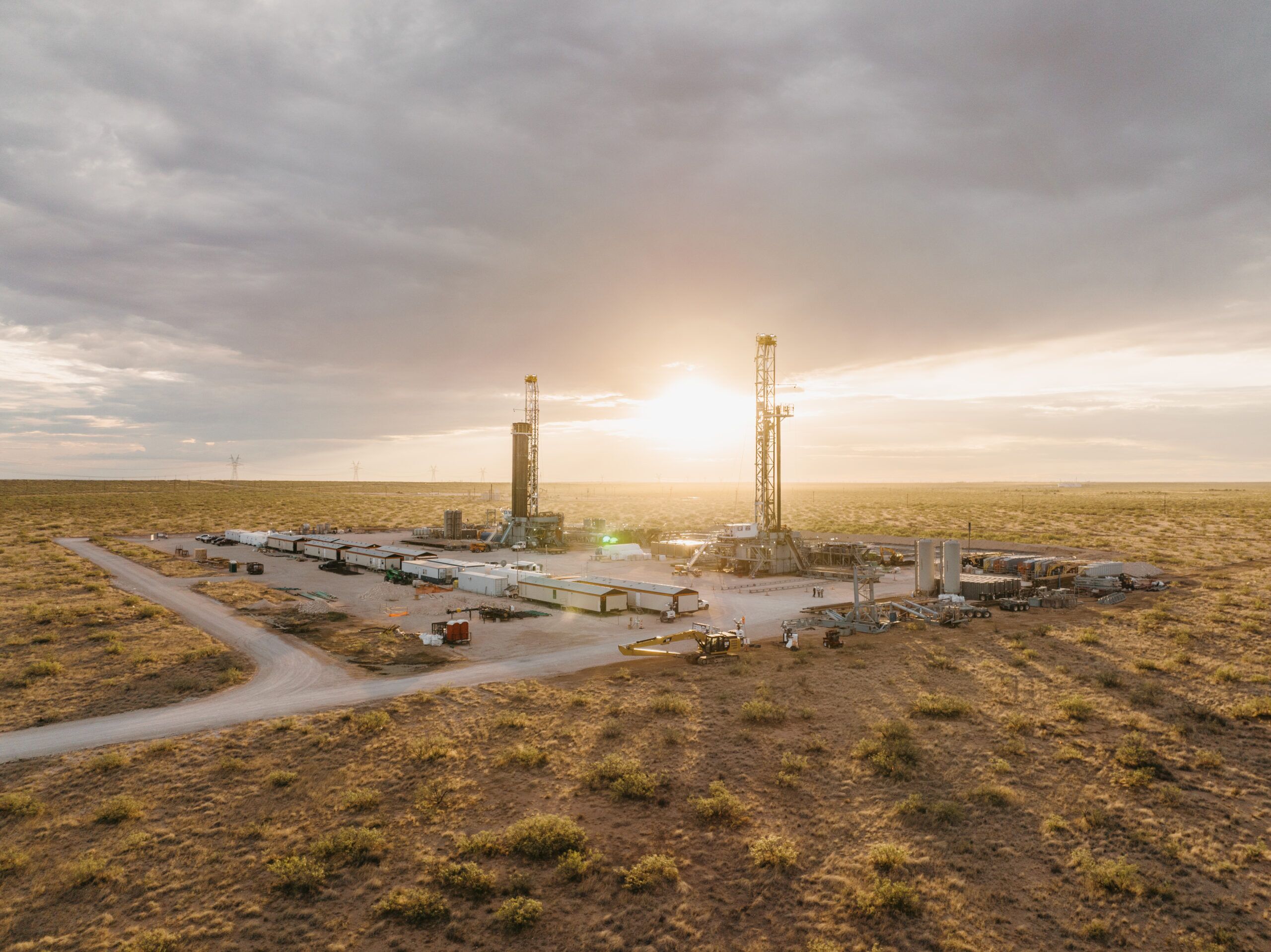

FlexRig® Fleet

Our award-winning, AC-drive FlexRig® fleet set the industry standard for mobility, performance, and safety. Designed to excel in unconventional drilling, they combine power, efficiency, and automation to deliver unparalleled outcomes.

We Put the Super in Super-Spec

The FlexRig Fleet is the benchmark for high-performance drilling. With configurations tailored for every environment – from compact single-well pads to complex multi-row layouts – our rigs deliver the power, finesse and mobility needed to meet the demands of modern drilling programs.

Achieve walking speeds of 100 ft (30.5 meters) per hour without moving the backyard
500 ft (150+ meters) multi-directional walking capabilities
1 hour average of well-to-well rig walks

Download Fact Sheet

Inquire About Availability

3,000 +

wells drilled per year

65,000 +M

feet drilled per year

9,500 +

feet average lateral length

2.5 Day

average rig moves in the most active U.S. basin

Explore The FlexRig® Fleet

H&P’s most efficient rig for moving from pad to pad, with 52 nominal truckloads

The Flex3 Skid is optimized for single-row well pads and can be tailored to suit a wide range of drilling environments. Our Flex3 Walker is designed for multi-row well pads, offering enhanced mobility to navigate around obstacles and accommodate higher clearance requirements. It’s particularly well-suited for long-reach wells and operations that demand efficient walking between pads.

Mast Hookload	675,000 on 8 lines 750,000 lbs on 12 lines with 27 1/2 or 37 1/2-in. rotary table option. Option to upgrade to 1,000,000 lb mast.
Circulating System	7,500 psi mud line 874-1,155 bbls mud system
Rig Floor Connections & Pipe Handling	Rig Floor Automation with HexGrip™ 120 wrench

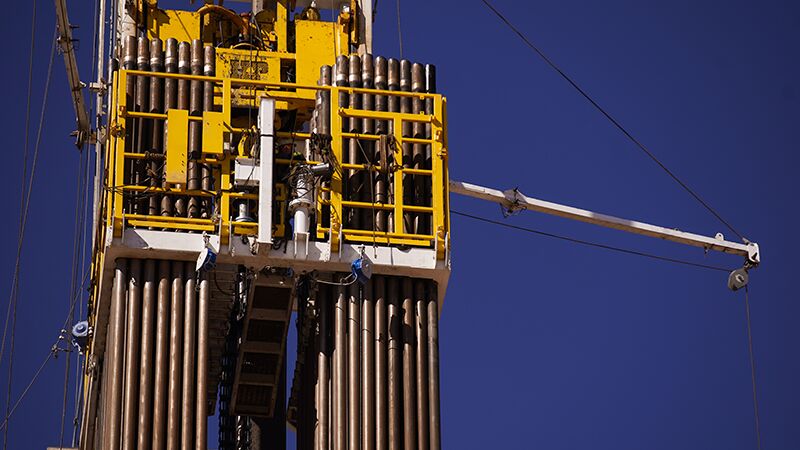

Setback Capacity	Up to 720,000 lb. simultaneous setback
Top Drive	TDS-11 HP, 500-ton high-torque capable AC top drive integrated into the mast
Substructure	Skid: 100-200 ft+ in x-axis Walker: Box-on-box-based sub structure with a v-door positioned side saddle with the x-axis. Side saddle facilitates more efficient offline cementing and other offline activities. Additional y-axis mobility and increased clearance for improved SIMOPs optionality. Nominal 200′ x 50′ (X-Y) area envelope.
Mobility	Skid: 100 – 200+ ft straight line skidding system with a well head clearance of 1.5 ft. Walker: 2,640,000 lb capacity hydraulic walking system, 360° walking capability. Nominal 200′ x 50’+ (X-Y) area envelope.

H&P’s most compact backyard design to minimize pad development costs, with 54 nominal truckloads

Ideal for compact pad designs, additional wellhead clearance needs, and long lateral multi-well pad drilling

Mast Hookload	675,000 lbs on 8 lines or 750,000 lbs on 12 lines. Option for 27 ½ or 37 ½ in. rotary table
Circulating System	7,500 psi mud line 850-1,155 bbls mud system
Rig Floor Connections & Pipe Handling	Rig Floor Automation with HexGrip™ 120 a clear frontrunner
Setback Capacity	Up to 1,000,000 lb. simultaneous setback
Top Drive	TDS-11 HP, 500-ton High-Torque Capable AC top drive integrated into the mast
Substructure	Skid: 100-200+ ft. x-axis and 10 ft. Y-axis Box-on-box based substructure with a v-door positioned sidesaddle with the x-axis for improved SIMOPs optionality. Walker: Box-on-box-based sub structure with a v-door positioned side saddle with the x-axis. Side saddle facilitates more efficient offline cementing and other offline activities. Additional y-axis mobility and increased clearance for improved SIMOPs optionality
Mobility	Skid: Skidding spacing with a maximum spacing of 10 ft. between the rows and total skidding distance of 75 ft., 105 ft. or 200 ft. along each row Walking: Multi-row walking spacing with a maximum spacing of 30 ft. between the rows and total walking distance of 200 ft.+ along each row 3,640,000 lb capacity hydraulic walking system vs. 2,640,000 lb with the Flex3W

H&P’s premiere high clearance, super-spec walking rig

Ideal for single row well pads and built for Middle East drilling environments

Mast Hookload	1,000,000 lbs on 12 lines with 27 1/2 or 37 1/2-in. rotary table option
Circulating System	7,500 mud line 874-1,155 psi bbls mud system
Rig Floor Connections & Pipe Handling	ST-80 with option for Rig Floor Automation with HexGrip™ 120 wrench[T
Setback Capacity	800,000 lb. simultaneous setback
Top Drive	TDS-11 HP, 500-ton High-Torque Capable AC top drive integrated into the mast
Substructure	Box-on-box-based subPu structure with a v-door positioned sidesaddle with the x-axis. Additional y-axis mobility and increased clearance for improved SIMOPs optionality Distance from the ground to the top of the drill floor is 30 ft. (9.1 meters) – Capable of accommodating 4 RAM BOP Stack
Mobility	Single row walking distance – 500+ ft. (83.82 meters) 100+ ft. (30.48 meter) per hour walking speed without moving the backyard. Nominal 200′ x 50′ (X-Y) area envelope.

Features & Benefits

Uniform Rig Design

Enables seamless crew transitions and universal safety, operational and maintenance procedures to help ensure safe, consistent performance across the fleet

Benefit

Safer operations, improved technical support/parts available and lower downtime

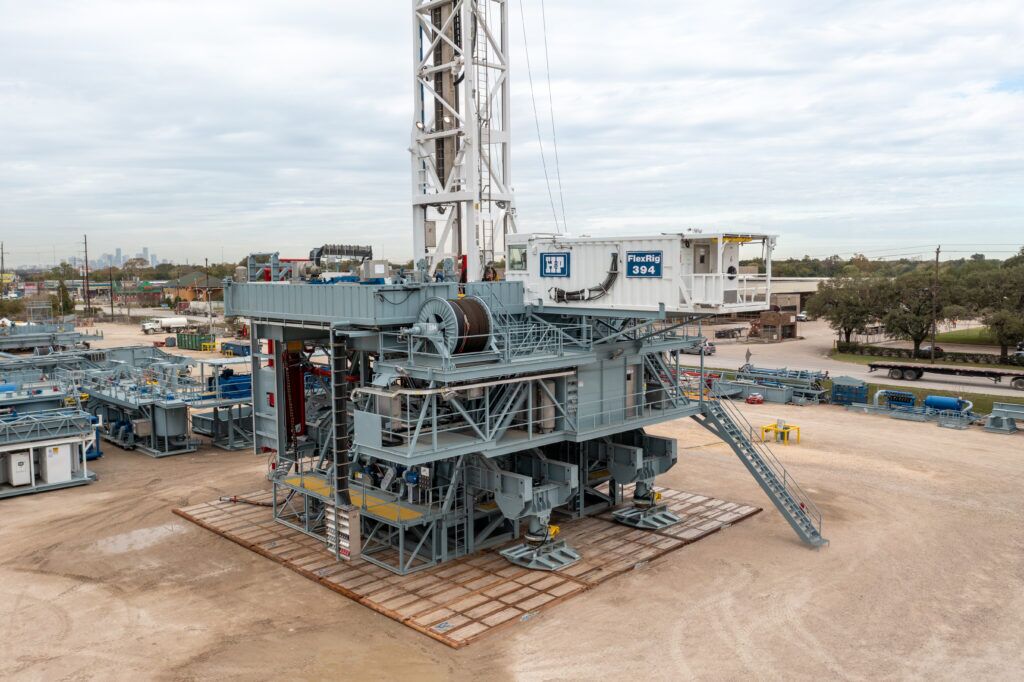

Box-on-Box Substructure

Designed for operational simplicity during rig-up and rig-down procedures

Benefit

Enhanced wellhead clearance through side saddle design

Pump Back System

Flexible flowlines maintain fluid connections during rig moves

Benefit

No need to disconnect hard lines

Patented BoomBox

Keeps the rig energized during walks

Benefit

No need to break electrical connections

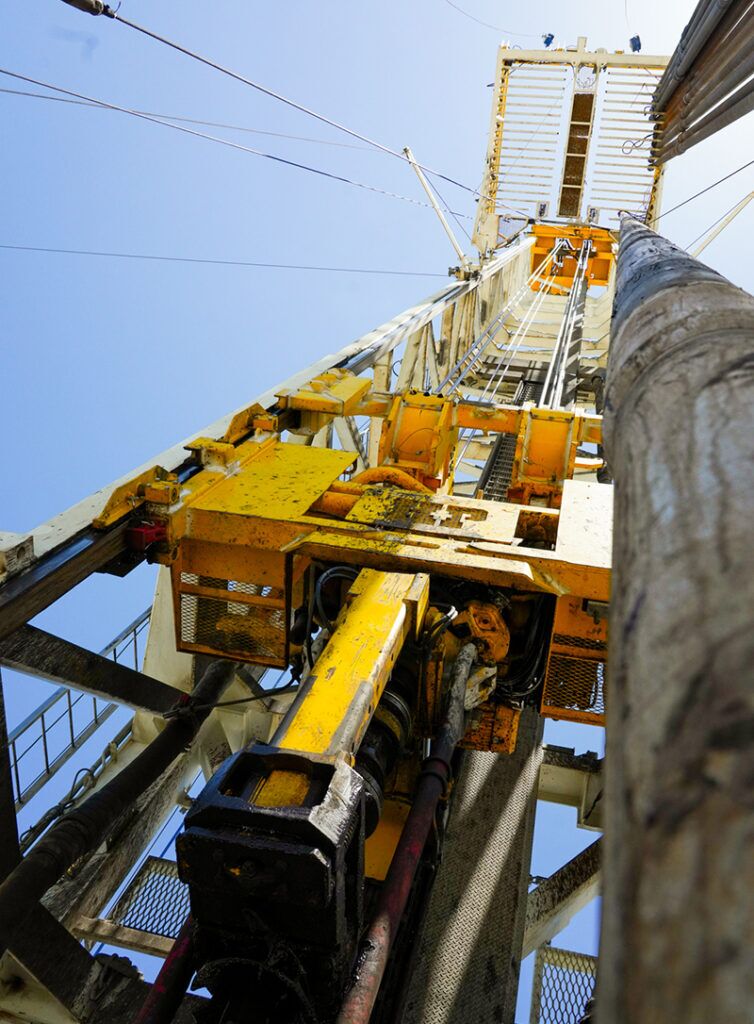

Hydraulic Mast with Integrated Top Drive

Eliminates the need to remove the block and top drive

Benefit

Streamlines rig moves and reduces dropped object exposure

High-Capacity Mast & Substructure

Supports up to 1MM lb hookload for deeper, more complex wells

Benefit

Fast-moving design enables 2–3 day pad-to-pad transitions

Automated Catwalk System

Mechanizes tubular handling

Benefit

Eliminates need for laydown machines, and reduces HSE exposure

Efficient Backyard Moves

Engines, mud pumps and tanks move on skids

Benefit

Improves safety and reduces logistics complexity

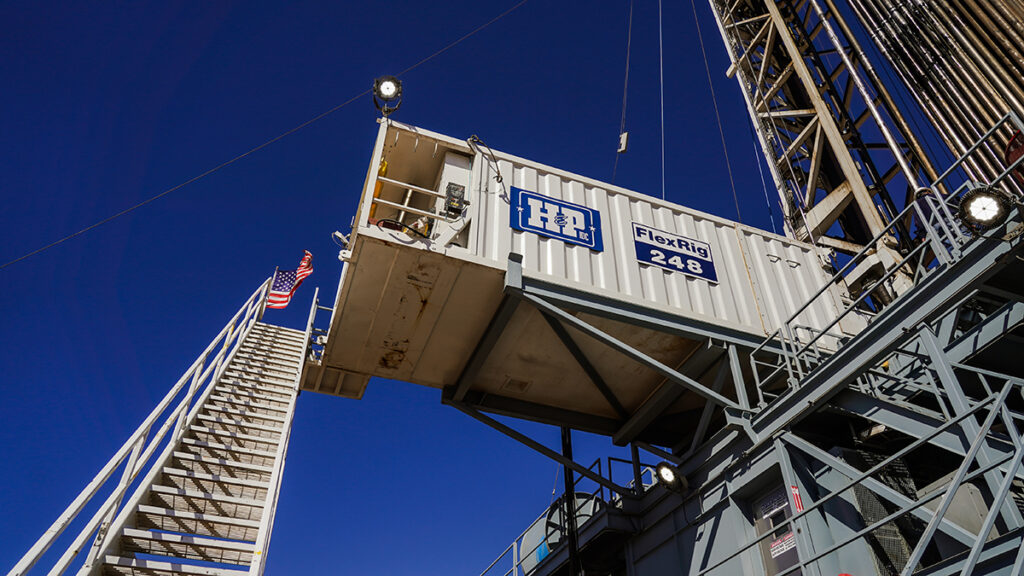

Proprietary Driller’s Cabin

Climate-controlled with full tech suite and remote execution capabilities

Benefit

Improves comfort, control and collaboration

Safety By Design

The inception of the FlexRig fleet design was guided by a proactive HSE framework from its earliest stages. Supported by a contemporary approach in our company safety philosophy, it enables intentional and strategic ways to efficiently reduce exposure to serious injuries and fatalities (SIFs).

Learn more about H&P’s HSE Approach >

Mast is proprietary design, offering strength of 500,000-1,000,000 lbs, with mechanical and electronic crown-out prevention

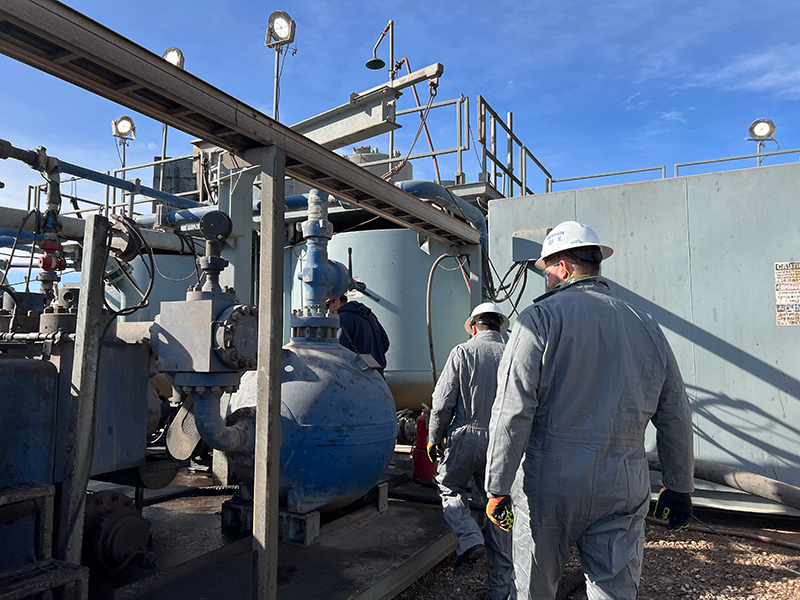

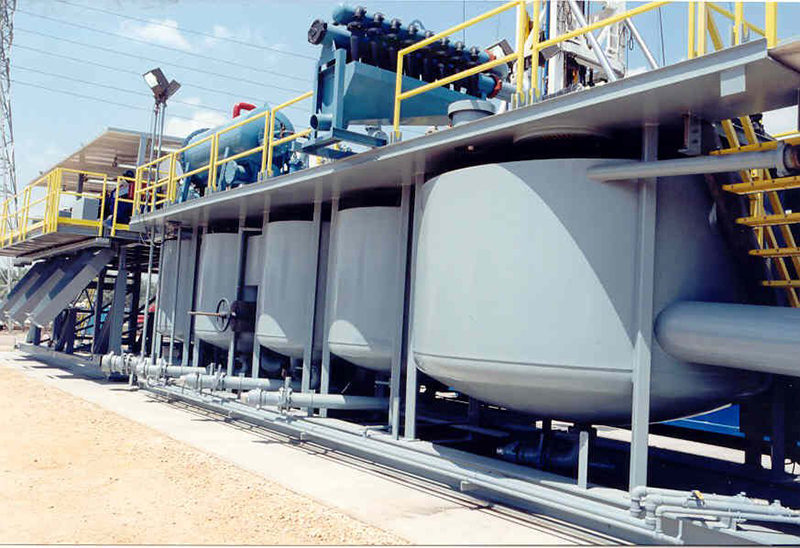

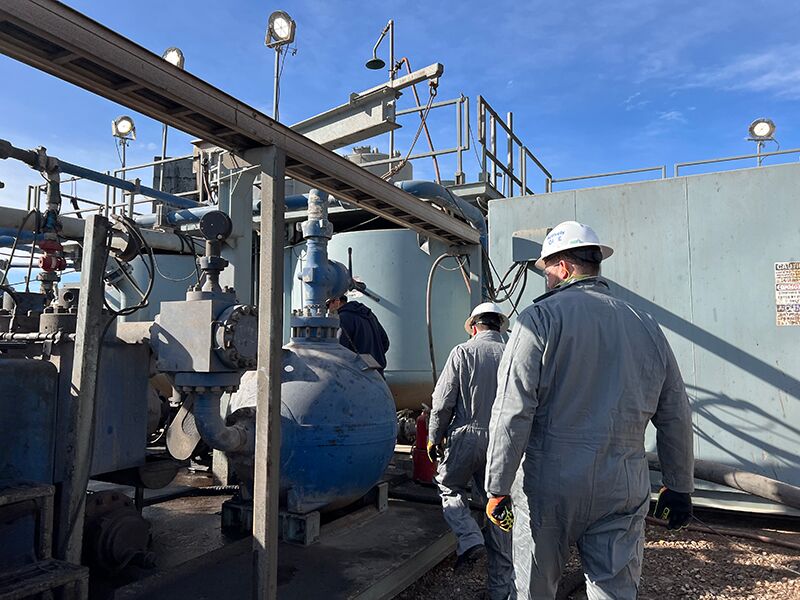

Proprietary hemispherical mud tanks facilitate efficient mud cleaning (saving time) & help eliminate the need to enter a confined space

Climate controlled Driller’s Cabin removes driller from the elements, creates enhanced visibility with cameras, and provides back door egress with stairs, away from the rotary table.

Exposures are reduced by not having to mobilize or rig up/down top drive separately

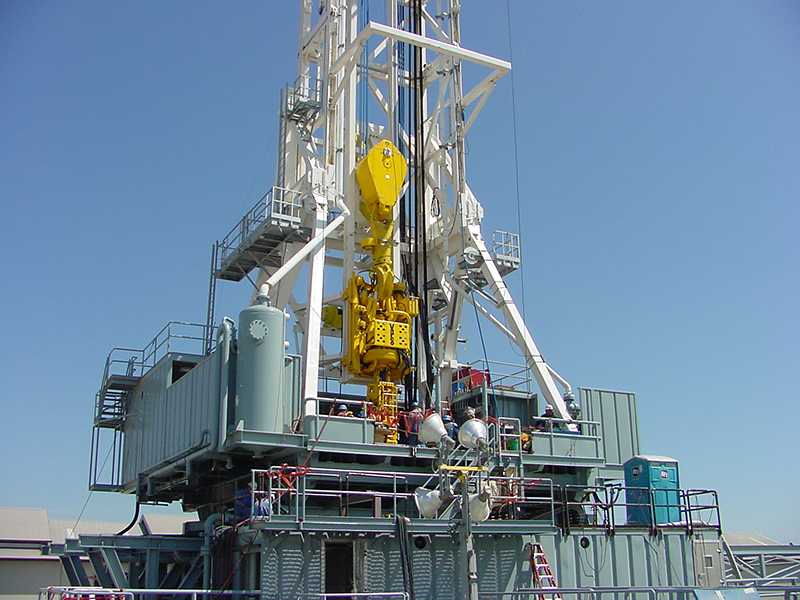

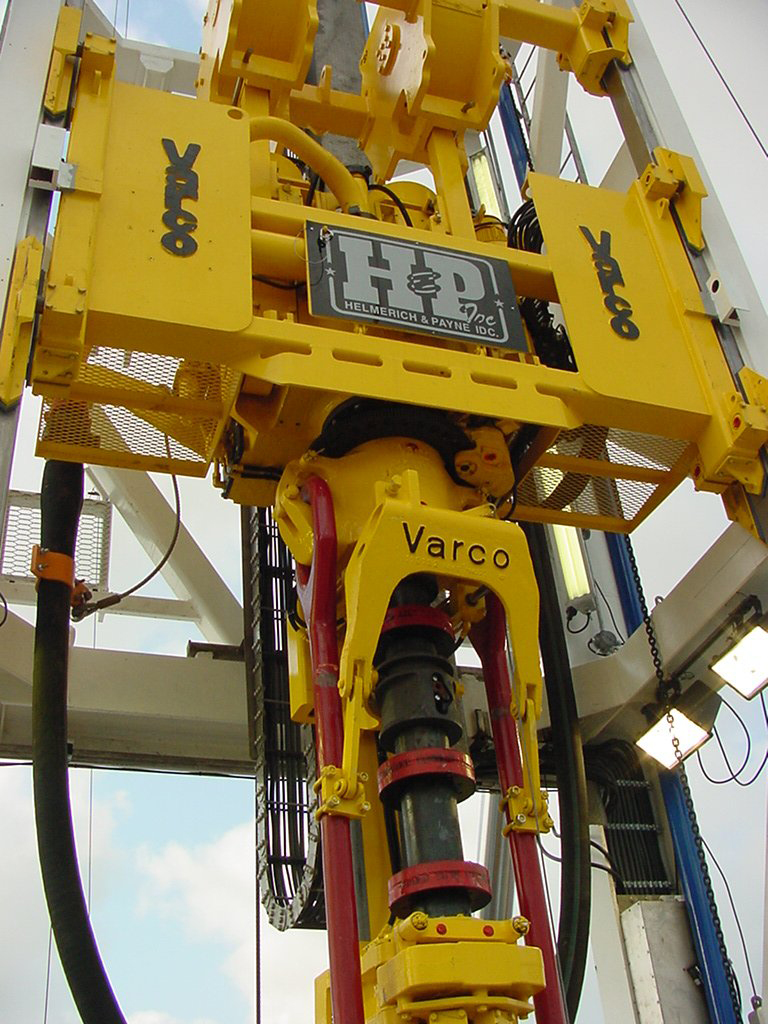

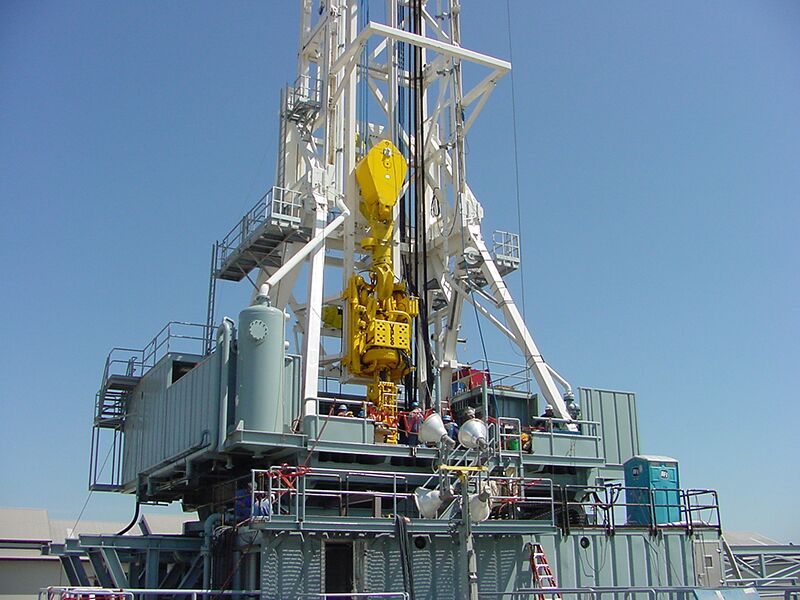

Top drive is fully integrated into the mast design, and traveling block remains in the mast for transport, facilitating efficient rig moves

H&P’s Pipe Delivery System helps prevent injuries utilizing bump gate and trough pipe retention system and eliminates the need for a laydown machine.

Company wide DROPS program to share lessons learned and reduce dropped objects

Standardized pressure control systems:

5,000 PSI Annular and 10K psi Ram Preventors plus 10K choke manifold with tertiary redundancy available. Additional sizes and capacities also available
BOP transport skid to eliminate unnecessary lifts and personnel exposures.
BOP handler and available BOP stump for offline testing
Available Rotating Deadline Anchor to enable safe and efficient slip and cut operations

Fewer Days on Location
Means Greater Impact

Drilling performance efficiency helps reduce AFE, increase well delivery and accelerate production.

Our flexible rigs (hence the name FlexRig) are engineered to move faster and operate smarter – dramatically reducing days on location. With advanced walking systems and minimal crew requirements, we help ensure safer, more efficient operations.

Our integrated technology suite leverages machine learning and artificial intelligence to predict downhole conditions, optimize drilling parameters and minimize nonproductive time.

The result? Consistent, repeatable performance across regions – from West Texas to the Middle East.

Today, we achieve the same drilling output with just 50% of the rigs used two decades ago. That’s the power of efficiency gains – less fuel burned, fewer emissions and a more sustainable future for energy

Is A Lower Day Rate
Costing You More?

We hear from some operators, “H&P, we’d love to use you, but your day rate is too high.” In this video, we explain the importance of rig move efficiencies and how a lower day rate might actually cost you more.

Supporting
Technologies

View All

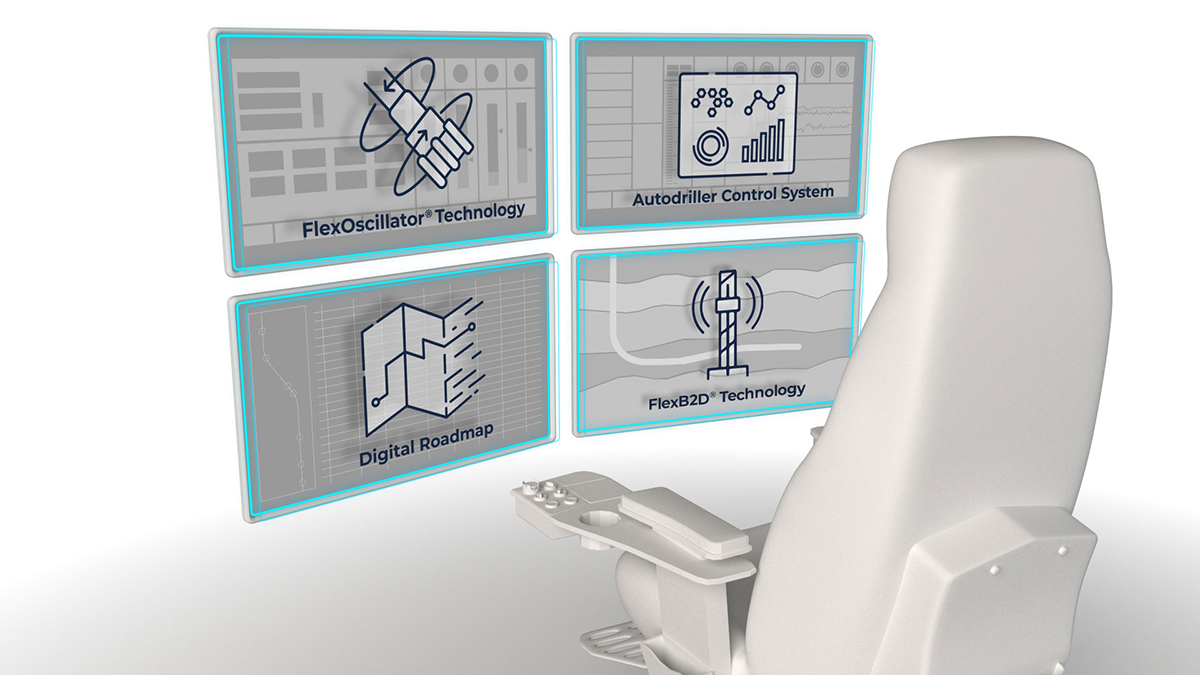

FlexFusion™ technology

H&P’s most advanced drilling automation package, combining several of our most trusted technologies.

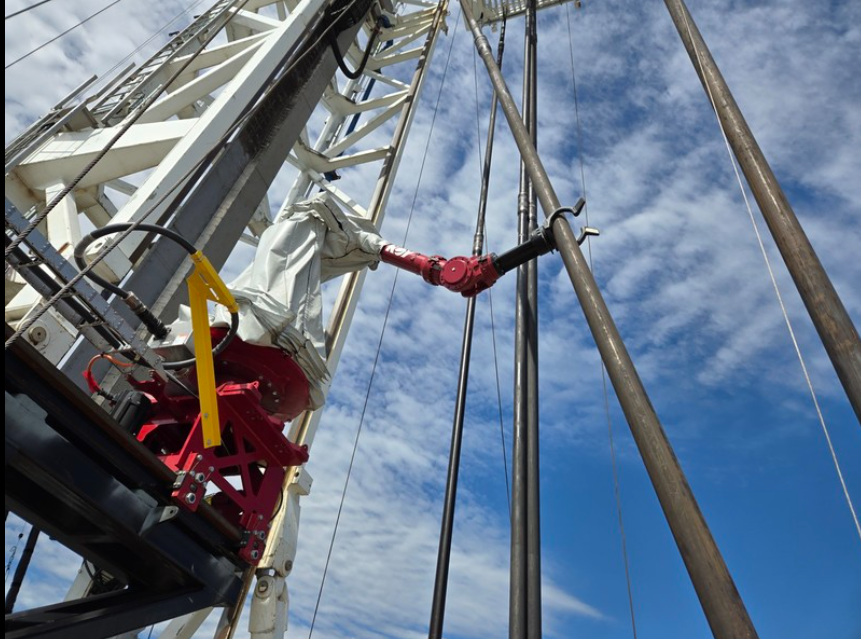

FlexRobotics™

H&P’s first full-scale robotic system for the rig floor, automating tubular handling and connection tasks to improve safety, consistency and performance while keeping crews out…

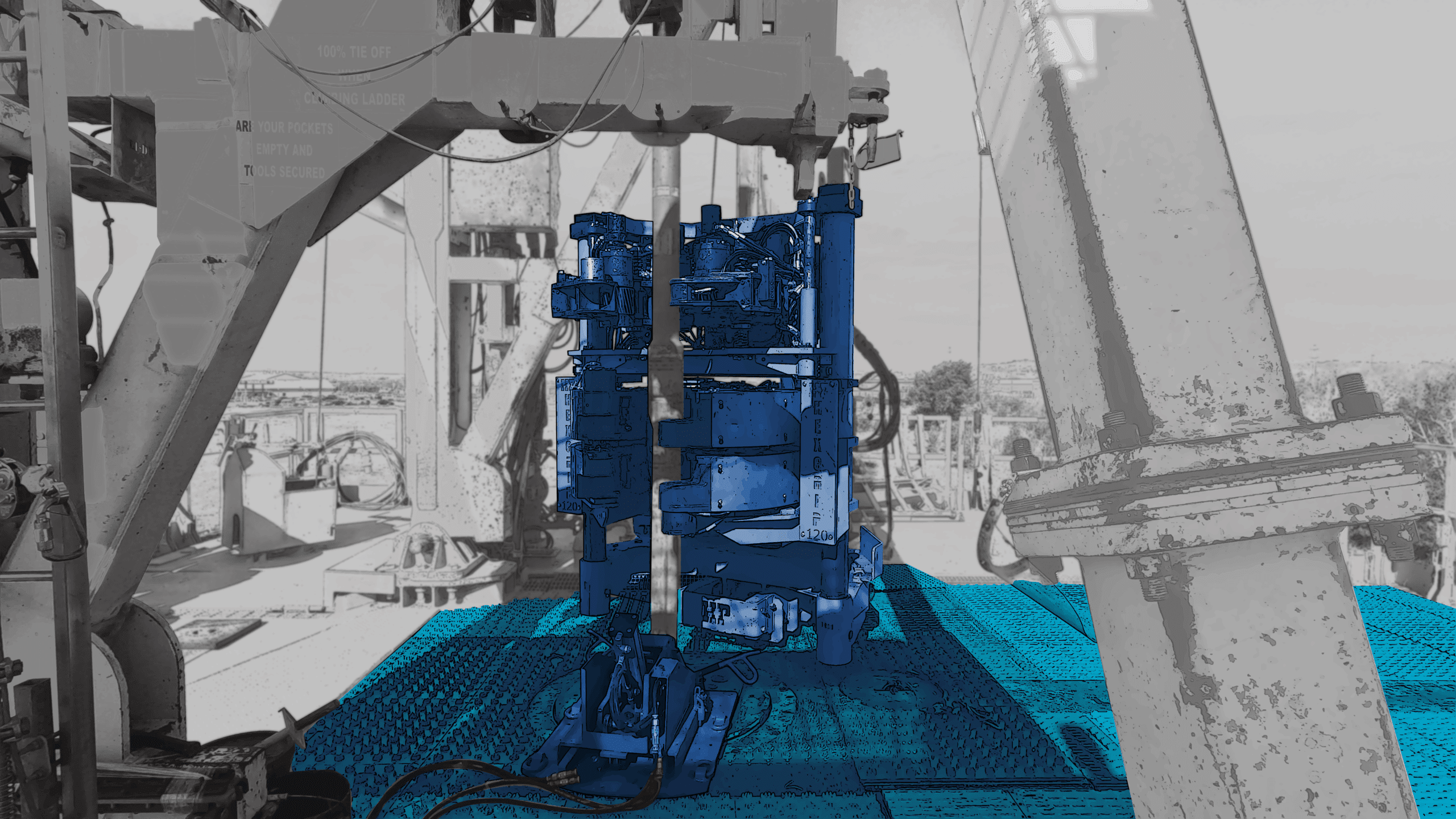

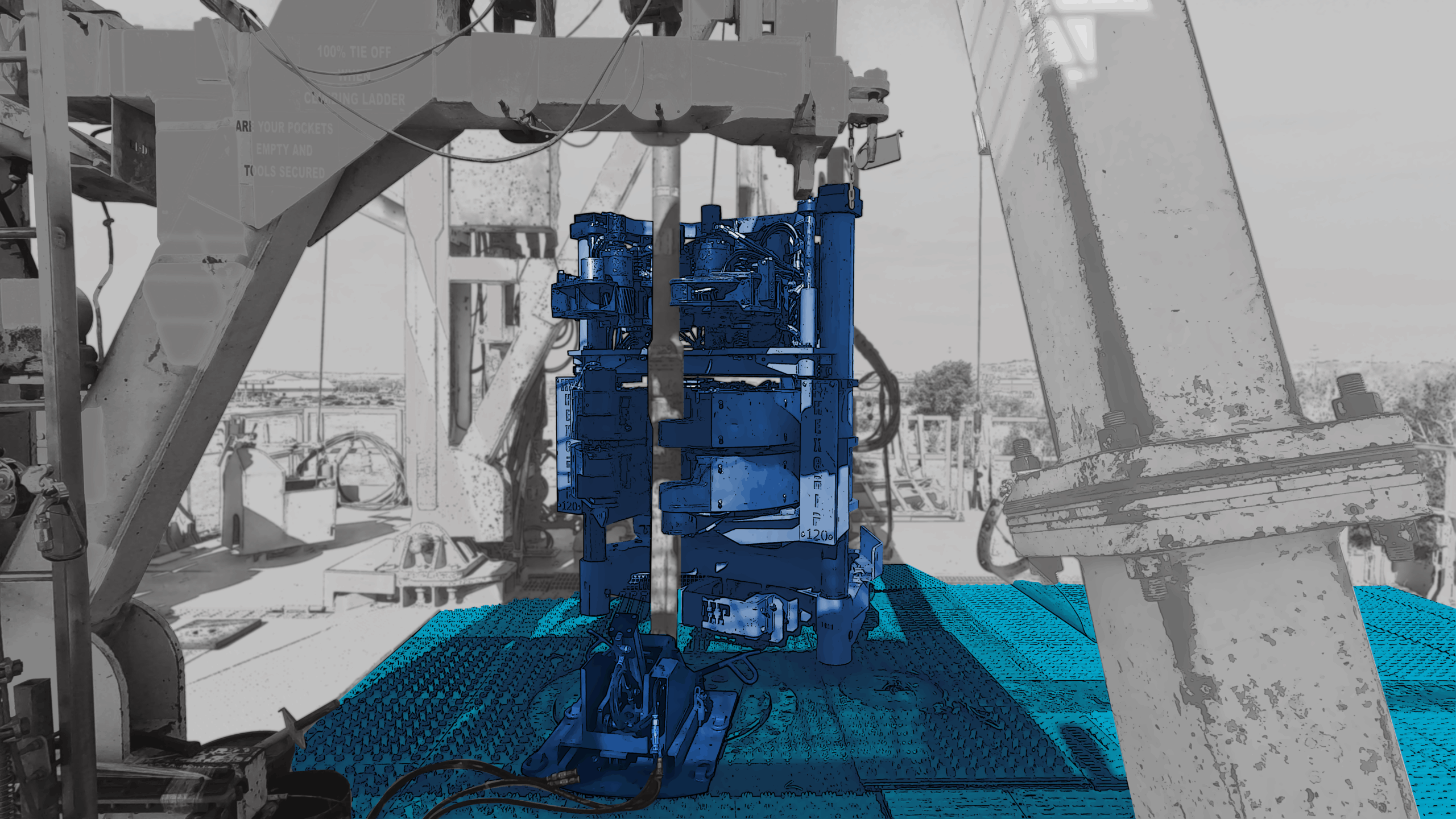

Rig Floor Automation

H&P Rig Floor Automation delivers safer, more consistent drilling by integrating smart tools like HexGrip™ wrenches and slip lifters to reduce manual exposure and improve…

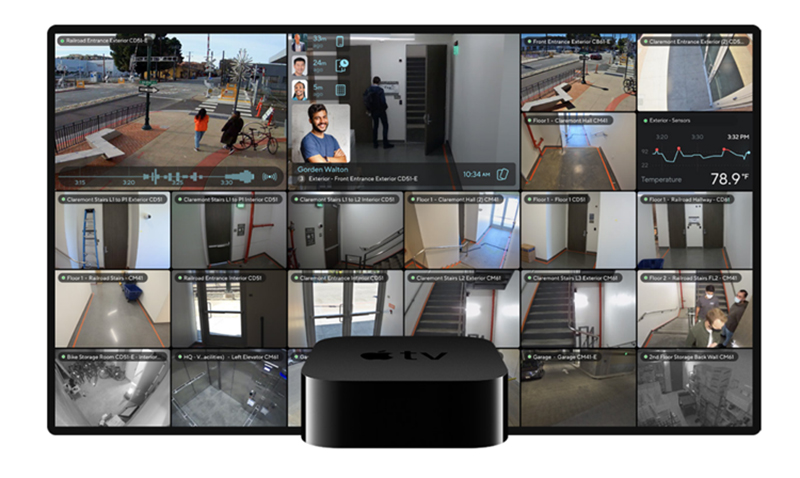

FlexVision Camera Suite

A real-time, remote camera system that enhances rig safety, streamlines operations and supports HSE training through comprehensive visual monitoring.
Automated HSE Systems

Digital tools to help crews execute safety-critical tasks more consistently and reduce exposure to serious injury risks.

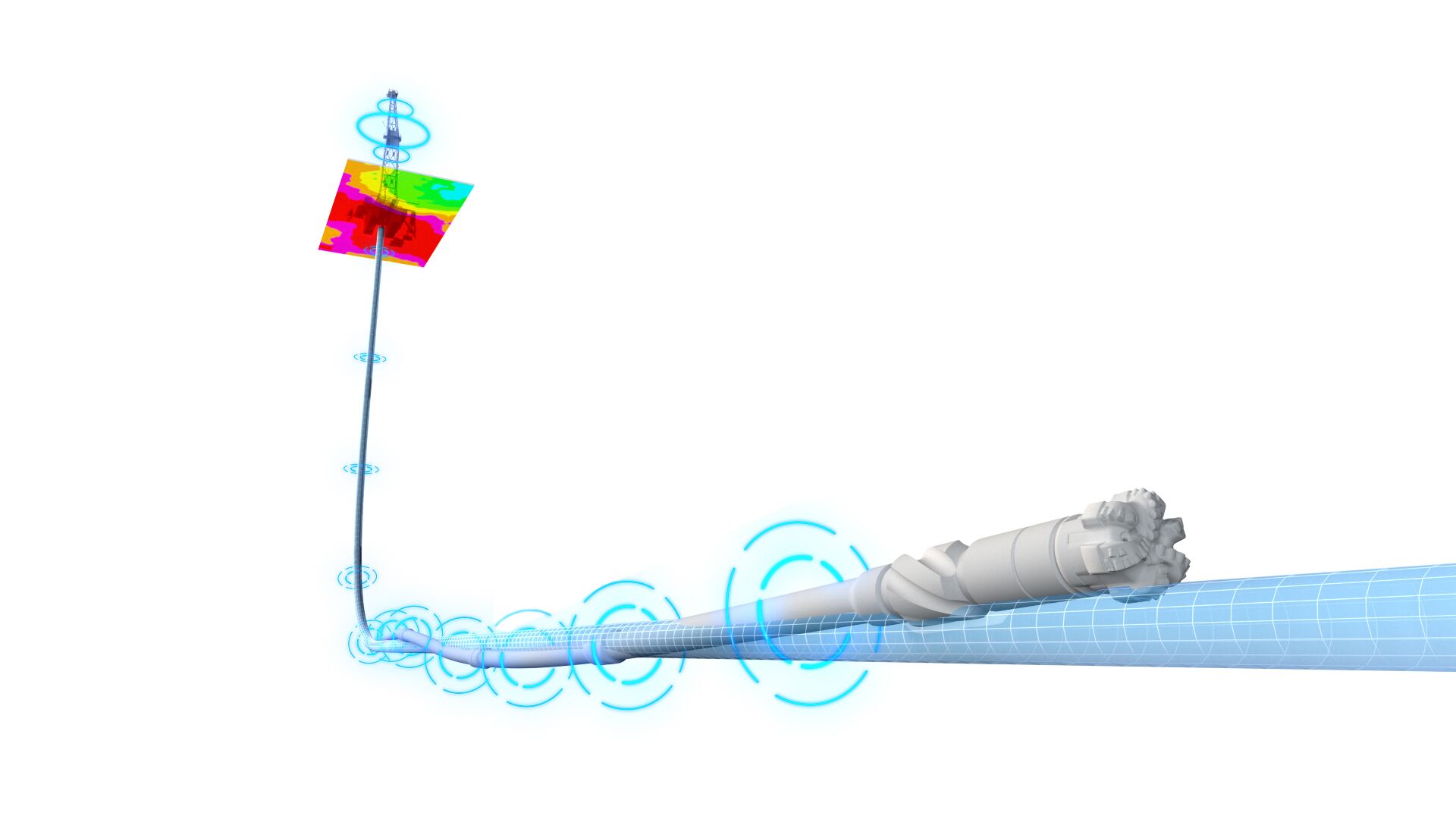

AutoSlide® technology

Optimize Sliding in Deviated & Horizontal Drilling Today’s oil and gas operations face tighter budgets, more complex formations, and faster timelines – requiring every move…
FlexOscillator® technology

Enhances directional drilling performance by reducing axial friction to improve slide efficiency in wellbores.

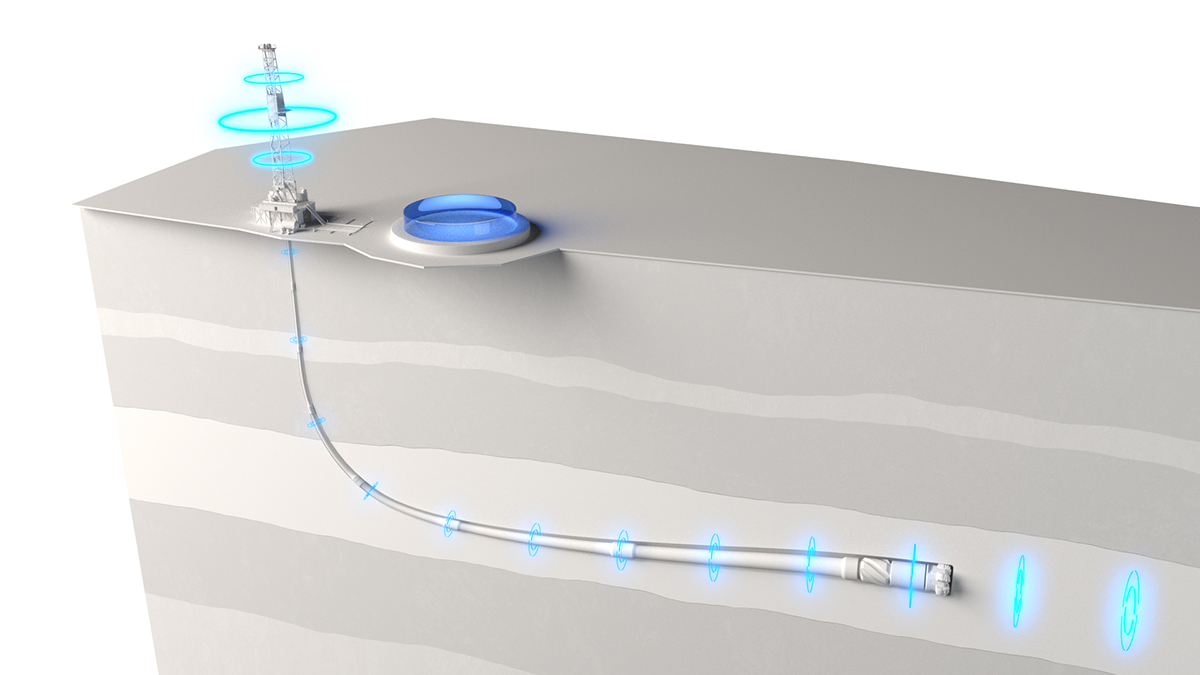

Advanced Well Engineering

Accelerates well delivery and maximizes well lifespans through physics-based modeling and drilling expertise
Survey Management

Delivers real-time, expert-driven survey corrections that reduce wellbore placement uncertainty and enable safer, more precise drilling decisions
Bit Guidance System

Offers real-time, automated directional drilling decisions to improve accuracy, reduce costs, and enable consistent performance across any rig
Power Management

Optimizes energy use across the rig to reduce fuel consumption, emissions and operational costs.

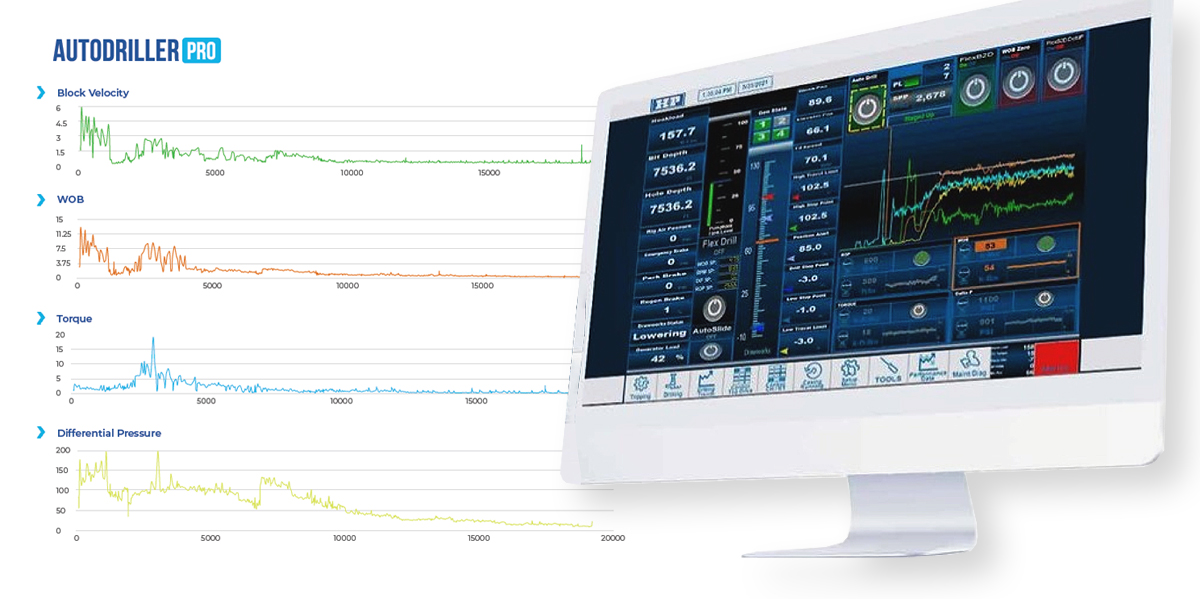

Autodriller Pro Control System

A fully integrated advanced control system that prioritizes consistent bit engagement to maximize ROP and reduce axial vibrations (bit bounce)

Find out more about our FlexRig® Fleet

Discover how our FlexRig® fleet can help you achieve faster, more precise drilling, with less tortuous wellbores.
